IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings

Name: IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone Viton FKM Sealing Rings
Brand: Sino Cable Gland Factory
Price: 1 USD

China IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings factory

Brand Name : Sino Cable Gland Factory

Model Number : NPT series

Certification : CE, SGS, RoHS, IP68

Place of Origin : Zhejiang, China

MOQ : 200 pieces

Price : lowest prices from direct factory

Payment Terms : T/T, L/C, Western union, Cash

Supply Ability : 500,000 pieces / month

Delivery Time : normally 8-12 days

Packaging Details : export packing (special packing is also available on request)

Model : NPT3/4" - NPT2-1/2"

Material : Stainless Steel Type 304, 304L, 316 or 316L

Clamping claw : UL-certified PA6 (Nylon 6)

Hermetic Seals : Silicone rubber

Surface treatment : Polishing

Color : Metallic tone

Protection : IP68

Thread standard : According to ANSI/ASME B 1.20.1

Features : Resistant to weather, corrosion, sunlight, ozone, fire and temperature

Trade terms : EXW, FCA, FOB, CIF, CNF

Contact Now

Description & Applications:

IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings are made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and are available in NPT tapered thread. They are designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for the cables.

These cable glands are chemical resistant, corrosion resistant and heat resistant, and they have also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and are popularly used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.

Product details:

No.	Item	Description
1	Place of origin:	Zhejiang, China
2	Manufacturer:	Sino Cable Gland Factory
3	Product name:	IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings
4	Model:	NPT1/4", NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2", NPT2", NPT2-1/2"
5	Material:	Stainless Steel Type AISI304, AISI304L, AISI316 or AISI316L
6	Seal & O-ring:	Silicone Rubber
7	Plastic insert:	UL-Polyamide 66, 94V-2 (also available in UL94V-0)
8	Surface treatment:	Polished
9	Color:	Metallic
10	Features:	Provide excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc.
11	Certifications:	CE, ROHS, REACH, IP68, UV
12	Protection:	IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
13	Thread:	According to ANSI/ASME B 1.20.1
14	Temperatures:	Normal use: -20℃ to 260℃.
15	Quality grade:	High quality
16	OEM services:	Yes, available
17	Supply capacity:	500,000 pieces each month
18	Prices:	Lowest prices from direct factory
19	Minimum quantity:	Yes, negotiable
20	Samples:	Free samples are available on request
21	Delivery time:	7-10 days after confirmation of orders
22	Payment terms:	T/T, Cash, L/C
23	Delivery terms:	EXW, FCA, FOB, CIF, CNF
24	Shipping methods:	By courier (EMS, TNT, DHL, UPS or FEDEX)
		By air (Shanghai or Ningbo)
		By sea (Shanghai or Ningbo)
25	Export package:	100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label)
		100 pieces per box, 50 pieces per box (white box or OEM box)
		other special packing is also available on request

IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings

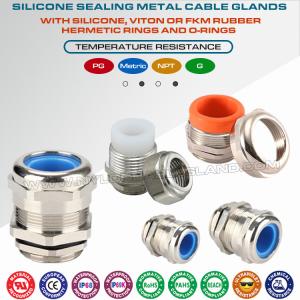

IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings Images
